Pinellas Park, FL · Recessed lighting · Residential Construction

Rooms lit by single bare fixtures during a renovation, finished with new recessed lighting across the ceilings. Here is the before and after from this recessed lighting installation job in Pinellas Park.

Need similar work? Call (727) 476-7079 (24/7 for emergencies) or request service online.

The problem

This home was in the middle of a renovation. The rooms and hallway were opened up, and each space was lit by a single bare fixture in the middle of the ceiling.

What we did

  • Laid out and installed new recessed lights across the ceilings in the renovated rooms and hallway.
  • Installed the lights during the renovation, ahead of the ceiling finish work.

Before & after

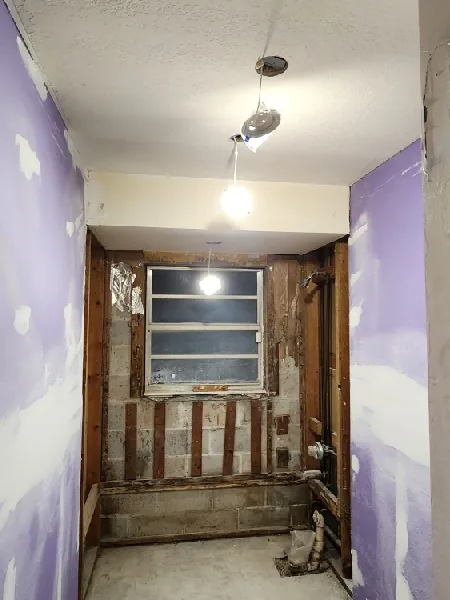

Recessed lighting installation in Pinellas Park, FL – before the hallway during the renovation, lit by one bare fixtureBefore
A gutted room during the renovation, lit by one bare fixture
Recessed lighting installation in Pinellas Park, FL – after the hallway with new recessed lightingAfter
The hallway with new recessed lighting
Recessed lighting installation in Pinellas Park, FL – before a gutted room with a single lightBefore
A gutted room with a single light
Recessed lighting installation in Pinellas Park, FL – after new recessed lights across the ceilingAfter
New recessed lights across the ceiling

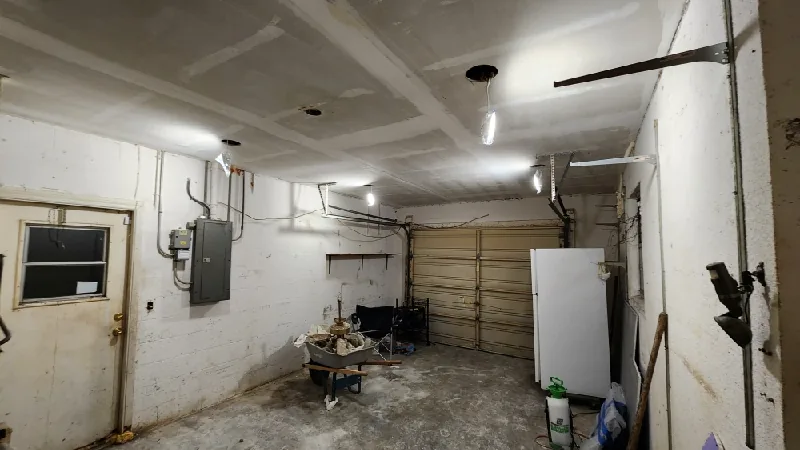

Recessed lighting installation in Pinellas Park, FL – before the space at the start of the renovationBefore
The space at the start of the renovation

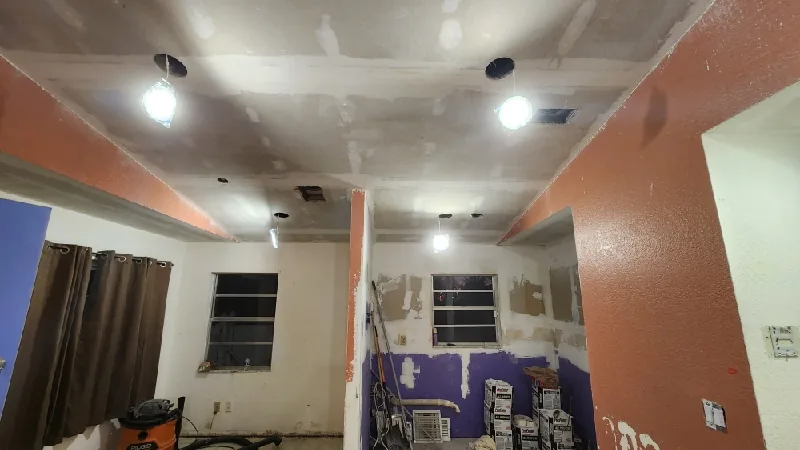

Recessed lighting installation in Pinellas Park, FL – after new recessed lighting through the renovated spaceAfter
New recessed lighting through the renovated space

The result

Even, bright light across each room and down the hallway instead of a single bulb, ready for the finish work.

Recessed lights in insulated ceilings

Recessed fixtures installed where they touch ceiling insulation must be rated IC (insulation contact). Many renovations use canless LED wafer lights, which are thin and fit between joists more easily.

Related: recessed and pendant lighting guide and light fixtures in Pinellas Park.

Related guides: buying an older home: electrical checklist · aluminum wiring and insurance.

Laying out recessed lights while the Pinellas Park ceilings were still open

A single bare lamp in the middle of a gutted room leaves dark corners and a harsh pool of light. During this renovation we laid out recessed fixtures across the rooms and the hallway while the ceilings were still open, so the new cable could run between joists before the finish crew closed the surface. That is a much cleaner path than cutting a finished ceiling later.

Where insulation would touch a housing, the fixture has to be rated for insulation contact. Many of the openings in a tight joist bay are a better fit for a thin, canless LED wafer than for a deep can. We set the layout for even spacing down the hall as well as in the rooms, so the walk between spaces does not drop back into shadow.

The work was done by Keywest Lights & Electric, licensed EC13014717, out of 6248 Seminole Blvd in Seminole. After the lights were in, the house was ready for drywall finish. If a later phase of the same renovation needs dimmers, a fan box, or a check of older branch wiring, the same crew can come back with the plan already in the file. Workmanship coverage is two years, or five years on a Member Care Plan.

Rooms, hallway, and the order of a recessed-light renovation

Several before frames show gutted rooms lit by one bare fixture. The after frames show the same ceilings with a grid of recessed lights instead of that single lamp. A hallway pair is in the set on purpose: the corridor would have stayed gloomy if we had only lit the rooms and left the passage on one leftover bulb.

Because this was mid-renovation, the fixtures went in before the ceiling finish. That sequence matters. Cable and boxes are placed, the layout is checked from the floor, and only then does the drywall crew close the surface. Trying to add the same grid later means cutting a finished ceiling for every opening and fishing cable through closed bays.

If you are about to remodel in Pinellas Park or nearby, send a floor plan or a room video while the ceilings are still open. We can mark spacing, call out insulation-contact ratings, and tell you where a thin wafer is a better fit than a deep housing, all before the finish schedule is locked.

We also mark switch-leg locations and any future fan-rated box before the drywall crew arrives. A hallway dimmer, a closet keyless, or a smoke-detector feed can be roughed in at the same time as the recessed grid, which keeps those later add-ons from cutting a new ceiling that was just painted.

Housing choices include insulation-contact airtight cans, canless wafers, sloped-ceiling trims, and hanger bars that span the joist bay. Baffles, trim rings, and gimbals are selected for the ceiling type in each room, not pulled from a single leftover box.

On a sloped or vaulted ceiling the trim has to be made for that angle, or the lamp will glare and the housing will not sit flush. We check pitch in each room before ordering, and we do not force a flat-ceiling trim into a vault.

Paint overspray on a trim ring is easier to avoid if the finish crew knows which openings are already landed. We leave caps or tapes on the new housings so dust and compound do not fill the baffles before occupancy.

A smoke alarm, a carbon-monoxide alarm, or a whole-house fan can share the renovation opening only when the box and the circuit are rated for that device. We will not hang a detector from a lighting lead as a shortcut.

Common questions about recessed lighting in renovations

Should recessed lights be installed before or after the ceiling is closed? Before, when the renovation allows it. Open bays make the layout and the cable path straightforward. After the board is up, each opening has to be cut from below and the cable has to be fished.

Will the hallway look dimmer than the rooms? Not if the spacing is planned as one run. On this Pinellas Park house the hallway received the same recessed layout as the rooms, so the light stays even as you walk from one space to the next.

Do you locate joists and mechanicals before cutting a bay? Yes. We look for plumbing, supply ducts, and truss or joist members so a recessed housing does not land on a pipe or a web. That check is easier when the ceiling is already open, which is why a renovation is the right time for this work.

Can the new lights be switched in zones or on dimmers? Yes. Rooms, the hallway, and a dining area can be separate switches, and dimmers can be installed if the fixtures are compatible. Those choices are easier to make before the finish crew closes the ceiling.

What if the existing wiring is ungrounded or aluminum? We stop and show you before we land new fixtures on a suspect branch. Recessed lighting does not fix a grounding or aluminum-wiring problem, and those issues should be handled as their own scope.

Is it easier to add recessed lights during a renovation? Yes. With ceilings open, we can run new cable and set boxes quickly and add dimmers on the right switch legs.

Can recessed lights go into an existing ceiling? Yes, using remodel cans or wafer LEDs, with small access cuts where needed.

Can you check older wiring while adding recessed lights? Yes. We look at the boxes we open and tell you if anything, such as aluminum branch wiring, needs attention. See our aluminum wiring guide.
