Panel and breaker box replacement across Clearwater, from 1950s homes in Skycrest and Morningside to Countryside subdivisions and salt-air homes on the beach. We pull the City of Clearwater or Pinellas County permit, coordinate with Duke Energy, and give you an itemized quote after a site visit. Licensed (EC#13014717), local since 2010.

Call (727) 476-7079 or request a panel visit. Office 7 AM–5 PM, weekend service, 24/7 emergency calls.

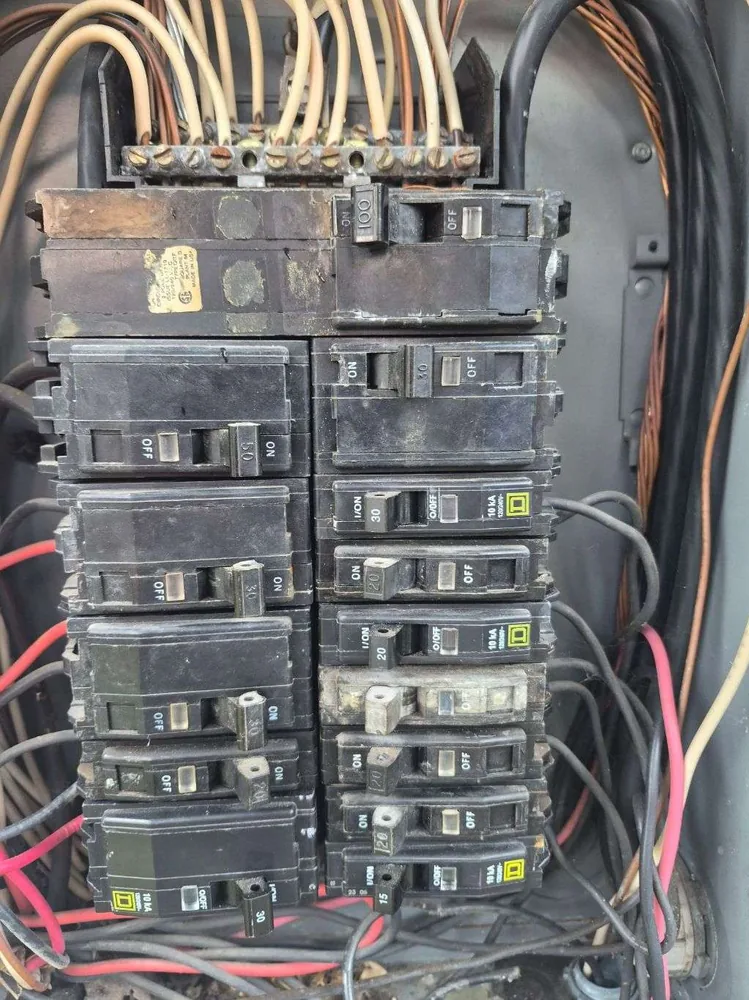

Before: old Clearwater panel with corroded breakers and tangled wiring

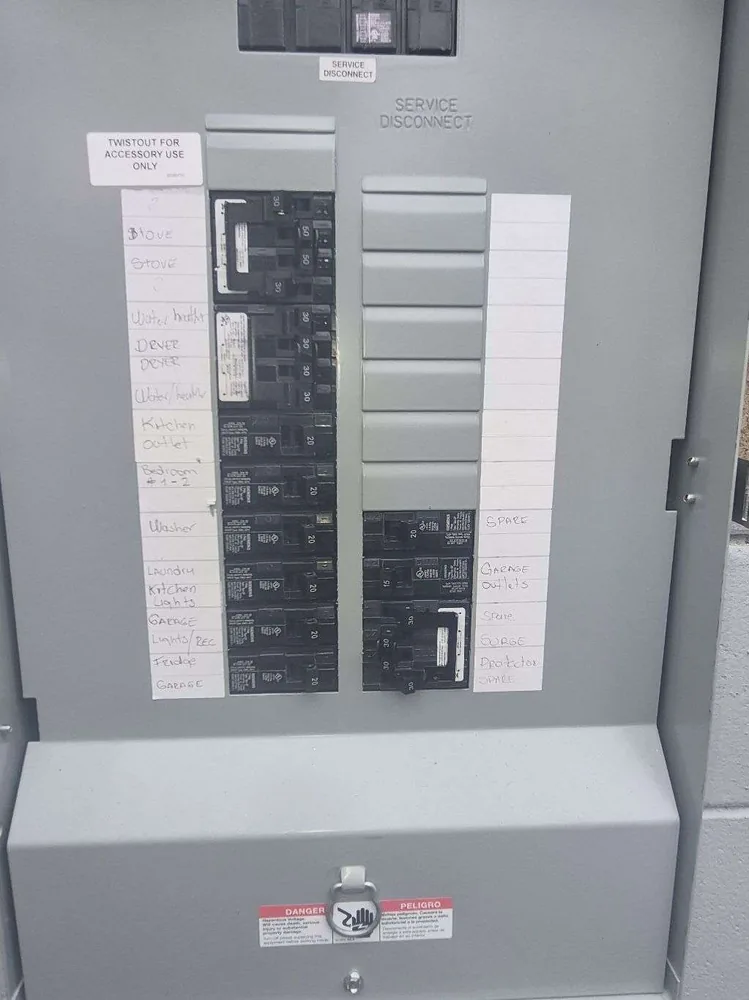

After: new panel in Clearwater, FL with labeled circuits, by Keywest Lights & Electric

A Clearwater job: corroded breakers and tangled wiring, then the new panel with every circuit labeled.

What we find inside Clearwater panels

Clearwater has about 117,200 residents (Census ACS 2020–2024), and its median home was built in 1978. But the panel problems depend a lot on the neighborhood:

Central Clearwater (Skycrest, Morningside, Del Oro and around downtown). Many homes date from the 1950s through the ’70s. We see original panels, Federal Pacific (Stab-Lok) and Zinsco units with well-documented breaker concerns, small 100- to 150-amp services, and panels packed with doubled-up breakers. More on FPE & Zinsco →
Clearwater Beach, Island Estates and Sand Key. Salt air corrodes breakers, bus bars, lugs and enclosures much faster than inland. Exterior panels here can look fine on the outside and be badly corroded inside. Many of these homes are in FEMA flood zones, and some took saltwater during Hurricane Helene’s surge in 2024.
Countryside and north Clearwater. Mostly 1980s homes. The panels are younger, but many are now full, and owners want room for an EV charger, a pool heater, a generator hookup or a remodel.

Signs it’s time to call: breakers that trip often or feel warm, lights that dim when the AC starts, rust or water stains on the panel, a burning smell (turn off the main if it’s safe and call us; we take emergency calls 24/7), or an inspector or insurer flagging the panel.

A recent Clearwater job

On one Clearwater home, the old exterior service had a separate meter and panel on the wall. Inside the panel, the breakers were corroded and the wiring was tangled and packed into the enclosure. We upgraded the home to 150-amp service with a new meter/main combo on the exterior wall, ran new conduit, and labeled every circuit. See the Clearwater before and after →

Corroded and flood-exposed panels near the water

Salt-air corrosion shows up as white or green crust on breaker terminals and bus bars, rust on the enclosure, and breakers that feel loose. Corroded connections run hot. If we see it, we’ll show you photos.
Flood exposure. Breakers and panels that sat in saltwater should be replaced, not dried and reused. Corrosion keeps working inside after the water’s gone. Leave the power off until it’s evaluated, and call our 24/7 emergency line in Clearwater if you need help now.
Elevation. If a home is being substantially improved or rebuilt after storm damage, flood rules may require the panel and other electrical equipment above a set elevation. We check that before we quote, and it’s often the right time to move a panel to a better spot.
Equipment choice. On the beach we use outdoor-rated enclosures where the panel is outside, seal penetrations, and recommend a closer look at the panel during regular Member Care Plan visits.

Breaker replacement or a full panel upgrade?

If your panel is a sound, current brand with clean bus bars and room to spare, we can often replace a worn breaker or add the AFCI/GFCI breakers your home needs. We recommend a full upgrade when:

It’s Federal Pacific, Zinsco or another brand where replacement breakers don’t fix the underlying risk
The bus bars are burned, pitted or corroded, including from salt air or flooding
Replacement breakers are obsolete or hard to find
There’s no room for the circuits you need

Panel, service upgrade or SPAN?

A new panel replaces the box and breakers but doesn’t add capacity by itself. If you’re adding big loads, we run a load calculation. Sometimes a new panel on the existing service is enough. Sometimes you also need a service upgrade, with a larger meter base and service conductors coordinated with Duke Energy, like the Clearwater job above.

Want to see and control every circuit from your phone? A SPAN smart panel replaces your panel entirely. See SPAN in mainland Clearwater or on Clearwater Beach & Island Estates. We’re a SPAN Authorized Installer with 20 SPAN installs. Solar and batteries are installed by our licensed partner installers; we do the electrical work and manage the project.

Planning an EV? See EV charger installation in Clearwater.

Permits in Clearwater

Inside city limits: City of Clearwater Planning & Development, 100 S. Myrtle Ave.
Unincorporated Clearwater-area addresses, including pockets near Largo and along US-19: Pinellas County.
Belleair, Belleair Bluffs and Belleair Beach each have their own arrangements.
Utility: Duke Energy Florida. We schedule the disconnect and reconnect when the meter has to be pulled.

A panel replacement always needs a permit. Unpermitted panel work can cause problems with insurance claims and when you sell.

What a Clearwater panel upgrade includes

Site visit. Panel, meter, grounding and bonding, the wiring at the panel, and what you plan to add.
Itemized quote after the site visit. Every part of the job on its own line. No panel prices over the phone.
Permit and Duke Energy coordination.
Installation, usually in one day for a straight swap. Power is off for part of the day. Every circuit is tested and labeled on a printed directory.
Whole-house surge protection at the panel. The electrical code adopted in Florida requires it when a home’s service equipment is replaced, and Clearwater’s lightning makes it worth having anyway.
Inspection. We schedule it and meet the inspector.

See our Good and Best panel options.

Hurricane season notes for this area

October is still hurricane season on the Gulf coast. For planned electrical work we keep the advice practical:

Standby generators need a listed transfer switch ahead of the panel. Portable-generator interlocks are a different product and are not installed in a SPAN Panel. See generator installation and hookups.
Whole-house surge protection is required by Florida’s adopted electrical code whenever a home’s service equipment is replaced, and it’s a smart add-on before storm season even when you’re not upgrading. See whole-house surge protection.
After a storm: do a visual check before restoring power if the house took on water, if you smell burning, or if the meter can or panel was submerged or damaged. Call us for a post-storm inspection rather than flipping the main back on and hoping. Emergency calls are answered 24/7; we do not promise a response time.
Permits: generator hookups, panel and service work still need the correct city or county permit. We pull those when we do the work.

Warranty, financing and scheduling

3-year workmanship warranty, extended to 5 years for Member Care Plan members.
Financing available through Acorn Finance, subject to credit approval. Check your options without affecting your credit score. Ask us and we’ll include the financing link with your itemized quote.
Hours: office 7 AM–5 PM, weekend service, and 24/7 emergency calls.

Why Clearwater homeowners call Keywest Lights & Electric

Licensed electrical contractor, EC#13014717, in business since 2010
Based at 6248 Seminole Blvd, Seminole, FL 33772, about 10 miles south of downtown Clearwater
Residential, condo and commercial, bondable to $1M, with projects up to $2M
Woman-owned, family-run business and Home Depot preferred contractor

Clearwater panel upgrade FAQ

How much does a panel upgrade cost in Clearwater? It depends on the panel, your service size, the condition of the meter base and grounding, any flood-zone requirements, and code corrections. We give you an itemized quote after a site visit.

My beach house panel is rusty inside. Is that dangerous? It can be. Corroded connections run hot. Have it evaluated soon, and if you notice heat, buzzing or a burning smell, turn off the main if it’s safe and call us.

My panel got wet in the storm surge. Can it be cleaned? Usually not. Saltwater-exposed breakers and panels are normally replaced. Leave the power off until it’s checked.

Do I need a permit to replace a panel in Clearwater? Yes. Inside city limits it’s the City of Clearwater; unincorporated addresses go through Pinellas County. We pull it either way.

How long will my power be off? Most Clearwater panel replacements are done in one day, with the power off for part of it. Service upgrades and relocations can take longer, and we’ll tell you the plan ahead of time.

Will a new panel let me add an EV charger? Often, yes. We run a load calculation to see whether your service can carry it, and explain the options if it can’t.
