On this St. Petersburg waterfront, salt-worn dock wiring on a piling was replaced with new weatherproof boxes and conduit serving the dock and the boat lift. The photos show the job before and after.

Dock wiring looking tired? Ring (727) 476-7079, 24/7 for emergencies, or request a visit online.

The problem

Dock wiring takes a beating from salt air. Here, the boxes and runs on the piling that feeds the boat lift had weathered badly: one box was open and some runs hung loose.

What we did

  • Installed a new dock panel for the dock and boat lift.
  • Mounted new weatherproof boxes on the piling.
  • Ran the dock and boat-lift wiring in conduit, neatly strapped to the piling.

Before & after

Dock and boat-lift electrical in St. Petersburg, FL – before weathered boxes and wiring on the dock pilingBefore
Weathered boxes and wiring on the dock piling
Dock and boat-lift electrical in St. Petersburg, FL – after new weatherproof boxes and conduit on the pilingAfter
New weatherproof boxes and conduit on the piling

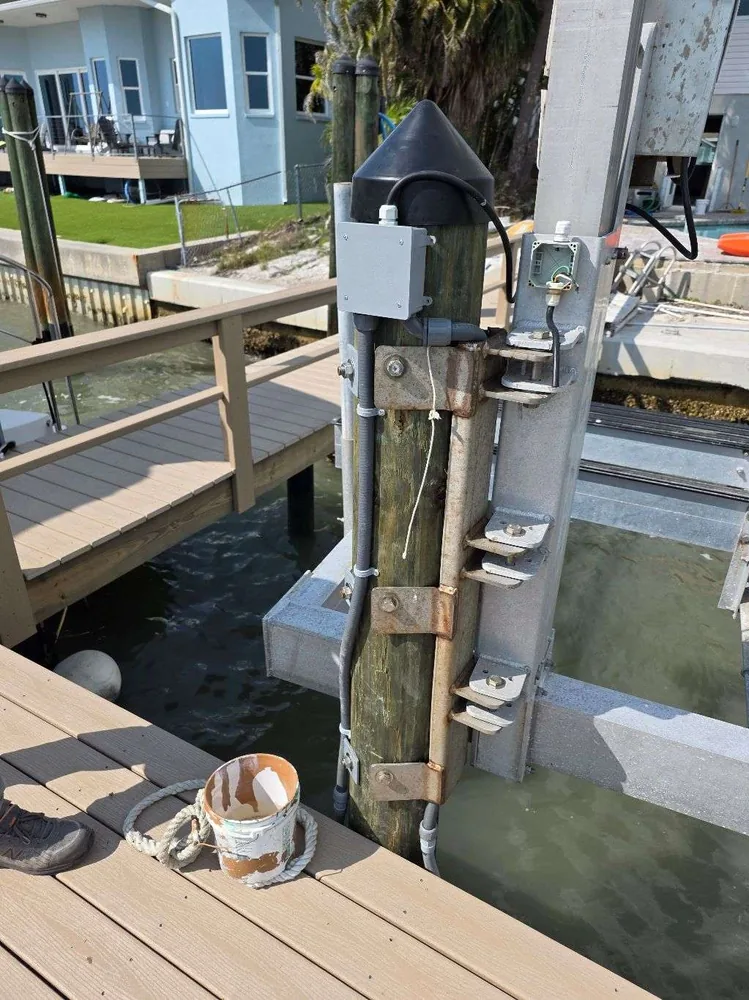

Dock and boat-lift electrical in St. Petersburg, FL – before boat-lift wiring with an open boxBefore
Boat-lift wiring with an open box

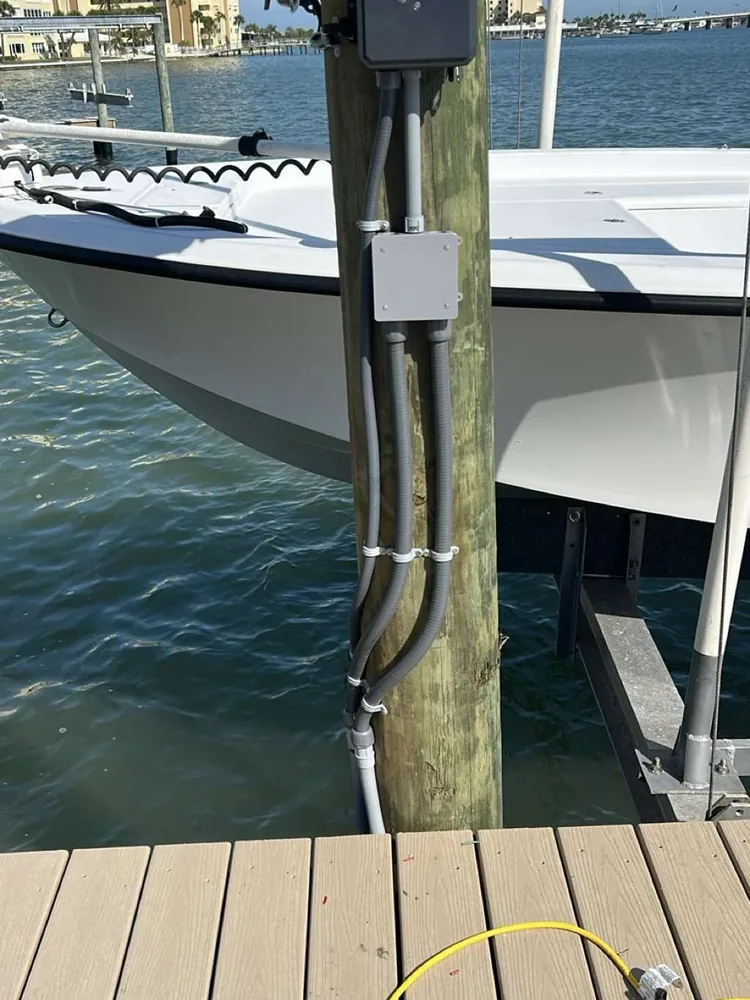

Dock and boat-lift electrical in St. Petersburg, FL – after new boxes with the conduit runs neatly strappedAfter
New boxes with the conduit runs neatly strapped

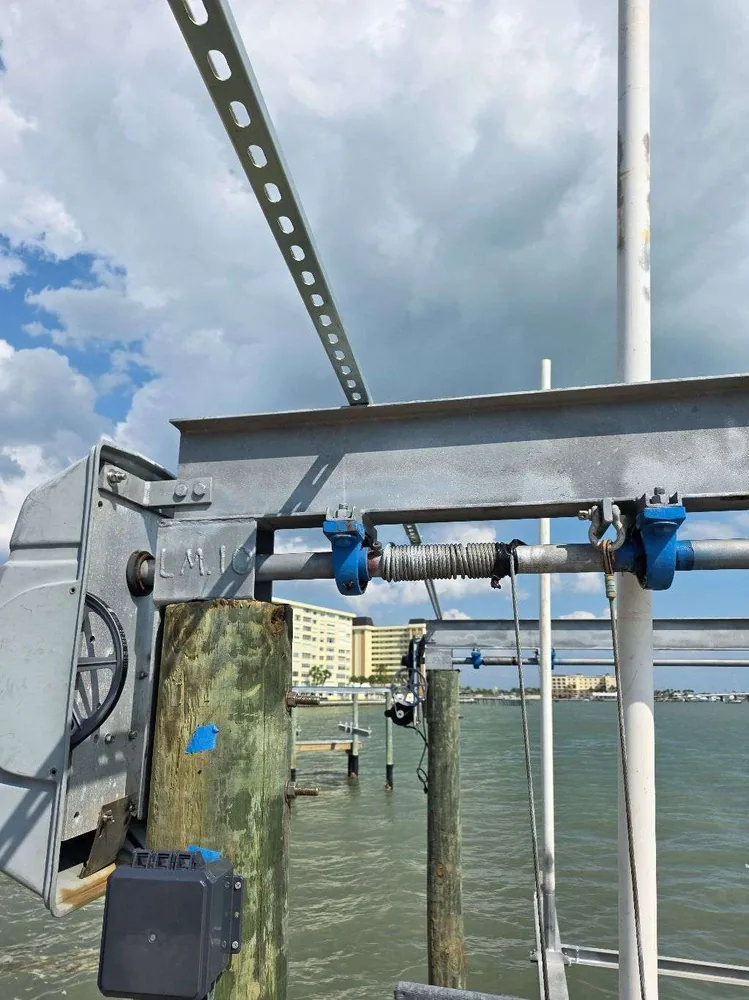

Dock and boat-lift electrical in St. Petersburg, FL – boat-lift wiring at the top of the piling after the work
Boat-lift wiring at the top of the piling after the work

The result

A clean, weather-resistant dock installation with organized wiring for the boat lift.

Related reading: what to check after lightning hits nearby · what to do with flooded wiring before power returns.

Rebuilding the St. Petersburg dock feed on the piling

Dock circuits live in salt, spray, and sun. On this St. Petersburg waterfront the old boxes and loose runs on the piling that feeds the boat lift had already given out: one enclosure was open, and some of the cable was no longer strapped. We set a new dock panel, put weatherproof boxes on the piling, and ran the dock and lift conductors in conduit, tight to the wood.

A dock should have a nearby disconnect and GFCI protection so a fault in the water can be cleared quickly. The new landing was built with that in mind, and the lift circuit was kept organized up the piling instead of hanging where it could chafe. Nothing in that environment is ‘good enough’ if a cover cannot close or a fitting can fill with salt water.

Keywest Lights & Electric, woman-owned and licensed EC13014717, took this job from the shop at 6248 Seminole Blvd in Seminole. If a later storm puts the dock under water, leave the circuit off until a licensed electrician has looked at it. For a wider commercial or waterfront package, send drawings to proposals@keywestlights.com. Workmanship is two years, or five with Member Care.

What the piling looked like before the new dock panel

The before photographs show weathered boxes and slack cable on the piling, including one open enclosure at the boat-lift feed. The after photographs show weatherproof boxes, conduit strapped to the piling, and a new dock panel feeding both the dock receptacles and the lift. A close frame at the top of the piling is the lift circuit after it was re-routed into that closed path.

Salt air and standing water ruin covers and fittings long before they ruin a house panel indoors. A dock landing has to close, drain, and stay on GFCI protection. A disconnect you can reach from the dock is part of that, so the lift can be isolated without walking back to the house.

If your own dock wiring looks like the before frames, or if a storm has already put it under water, leave those breakers off and send a photo of the piling and the house disconnect. We will tell you whether the next visit is a repair, a full rebuild, or a safety check before anything is re-energized.

Below the pier cap, we keep drip loops out of standing water and use sealed connectors rather than open wire nuts. If the house feeder comes through a crawl space or a seawall chase, we inspect that run too, because a perfect piling cannot fix a green, crumbling conductor on the way out of the building.

Dock hardware that lasts here is stainless or other corrosion-resistant strapping, liquidtight or rigid conduit with a proper packing gland, in-use receptacle covers, and sealed heat-shrink or gel-filled connectors. Wire nuts left open to spray are not an acceptable splice on a piling.

If the dock also has a fish-cleaning sink, a shore-power inlet, or low-voltage lighting, those should be on their own GFCI-protected circuits and not daisy-chained from the lift. We can add them in the same visit when the new panel has the spaces.

A sacrificial zinc anode is not a substitute for a closed, listed enclosure, and we do not treat it as one. The electrical goal is a dry interior and a tight lid, not a piece of metal hanging nearby.

Common questions about dock and boat lift electrical

Why run the dock and the lift in conduit on the piling? Exposed cable on a piling chafes, takes UV, and fills with salt. Conduit and strapped weatherproof boxes keep the conductors in a closed path from the new dock panel to the lift.

Is a boat-lift circuit treated the same as a house branch? No. It needs a wet-location assembly, a disconnect you can reach, and GFCI protection. We size and place those parts for the lift you actually have, not for a generic backyard receptacle.

What enclosure rating belongs on a dock piling? A weatherproof, corrosion-resistant enclosure that can close in spray, with in-use covers on receptacles that may be plugged in during rain. Indoor boxes and open backs do not last on a piling.

Can the lift and the dock receptacles share one breaker? They should be planned as separate, labeled circuits whenever the load and the panel allow it, so a fault on a receptacle does not drop the lift, and service on the lift does not kill the dock lights.

Do you also repair the house panel that feeds the dock? If the indoor feeder, the disconnect, or the grounding path is part of the problem, we include it. A new piling run does not help if the source in the house is already corroded or undersized.

Why does dock wiring fail so much? Salt spray, standing water and UV break down boxes, covers and connections. We use corrosion-resistant enclosures, sealed fittings and GFCI protection.

Should my dock have its own disconnect? A nearby disconnect makes service safer and may be required. We check what your dock needs during the visit.

What should I do if my dock electrical went underwater? Keep it switched off until a licensed electrician has looked at it. Our guide to flooded wiring explains why.
